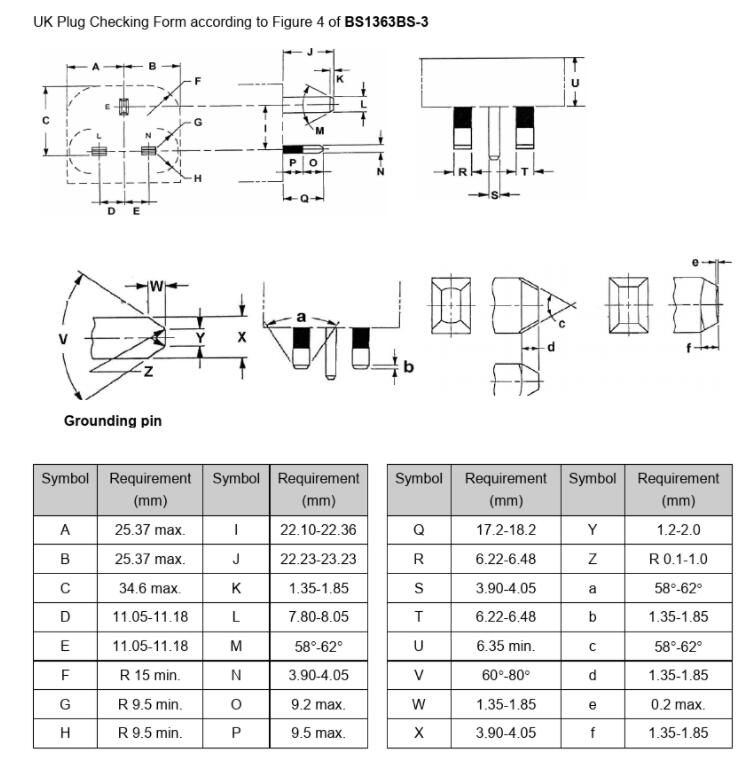

UK plug Checking
Form according to Figure 4 of BS1363BS-3
The Type G Plug & Socket is a 3 plug socket primarily used in UK, Ireland, Malta, Malaysia, and Singapore. The Type G Plug & Socket is grounded, has an amp rating of 13 A, voltage range of 220-240 V, and is compatible with plug type G.
The outer pins of the Type G Plug & Socket have a width of .16” (4 mm), height of .25” (6.35 mm), and length of .7” (17.7 mm). The two pins are set .87” (22.2 mm) apart, while the earth pin is centered and spaced .87” (22.2 mm) vertically from the others. The earth pin has a width of .31” (7.93 mm), height of .16” (4 mm) and length of .89” (22.73 mm).
